Transfer Line HMI
- Industry
- Manufacturing
- Stack
- Siemens · SIMATIC HMI · VFD · PLC
PLC · HMI
Siemens SIMATIC interfaces to run and diagnose stations.
- Industry
- Manufacturing
- Problem
- Operators lacked a clear view of each station's state and faults.
- Solution
- HMI screens with a station map, manual mode, drive parameters and visible alarms.
- Scope
- 01Station map and states
- 02Manual mode and VFD parameters
- 03Alarms and diagnostics
- Technologies
- Siemens
- SIMATIC HMI
- VFD
- PLC

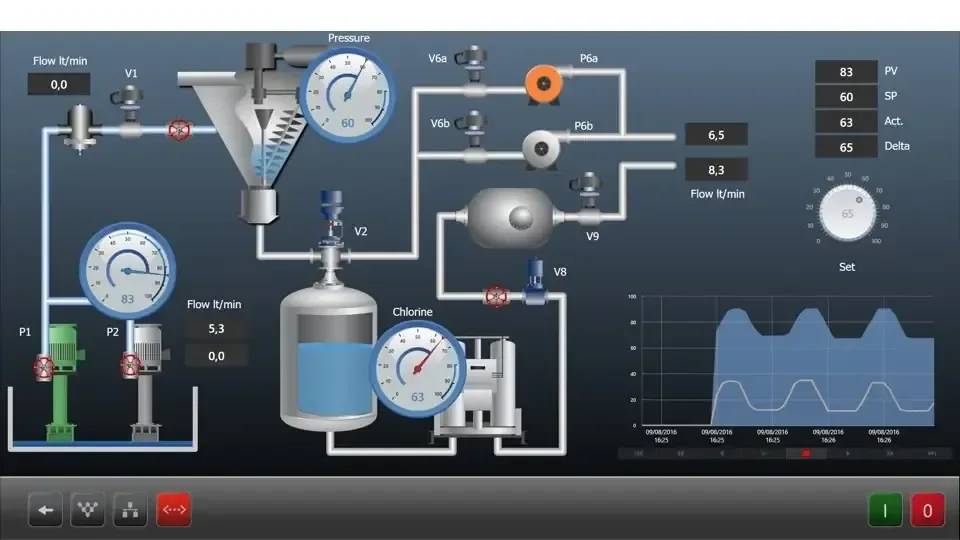

Gallery
Process
- 01Survey
Process, constraints and acceptance criteria.
- 02Engineering
Mechanical, electrical and controls design.
- 03Build
Fabrication, assembly and integration.
- 04Start-up
Testing, tuning and documented hand-over.
